Flexiline

Product description and applications

Flexiline is a superior Layflat hose reinforced by a woven seamless jacket. It is ideally suited for:

  • Dewatering of fields and foundations
  • Flood irrigation and wash down
  • Medium pressure water transportation
  • Application in industrial and agricultural requirements

Benefits and cost saving features

  • Woven jacket of high tenacity synthetic filament yarns
  • Easy care and washable
  • Excellent UV resistance
  • Quality coating of PVC/Nitrile
  • Low coil volume for easy handling
  • Standard lengths – 100 metres
  • Longer lengths available on request

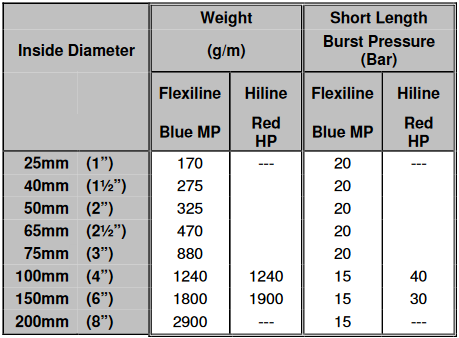

Specifications

Inside Diameter 100m Coil Diameter
Blue MP – Red HP
Weight (g/m)
Blue MP – Red HP
Short Length Burst Pressure (Bar)
Blue MP – Red HP
25mm (1″) 500 110 20
38mm (1½”) 600 750 200 240 20 50
50mm (2″) 600 750 225 310 20 50
64mm (2½”) 650 800 270 390 20 40
76mm (3″) 800 800 650 670 20 40
102mm (4″) 850 850 1000 1000 15 40
152mm (6″) 900 1450 1520 15
202mm (8″) 900 1950 15

The manufacturer reserves the right to modify specifications without prior notice.
