Aqualine

Aqualine

Product description and applications

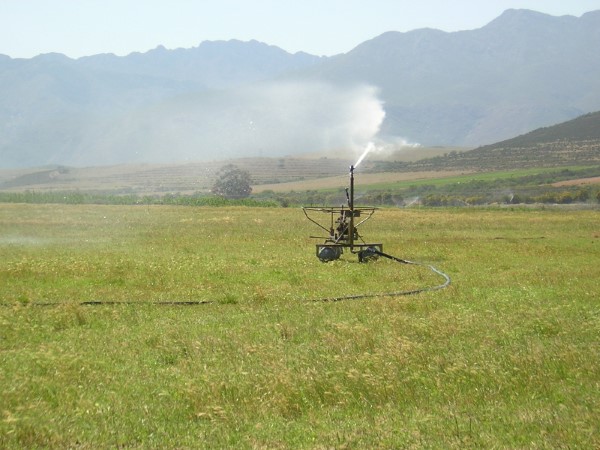

Aqualine is a new generation irrigation hose for travelling irrigators and booms, and is ideally suited for:

  • Long distance water transportation

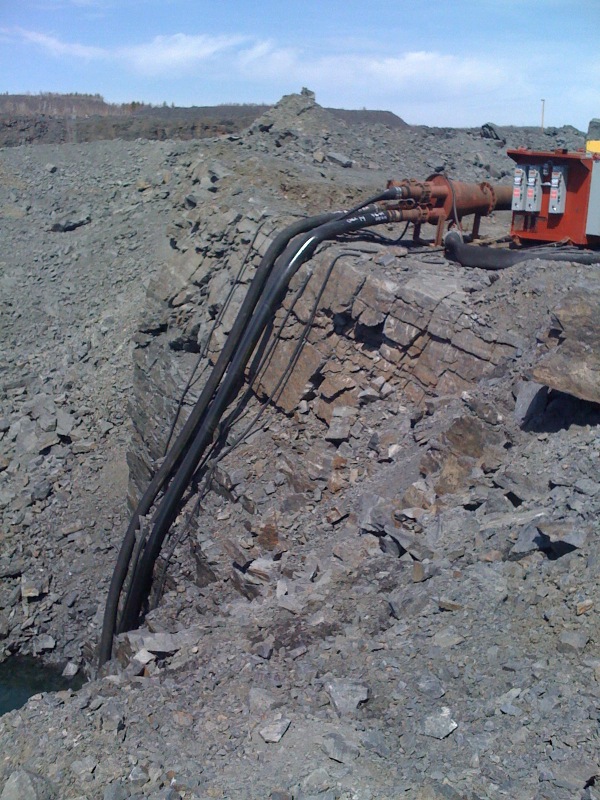

  • Mining and offshore work
  • High Pressure Dewatering under extreme conditions

Benefits and cost saving features

  • Jacket of warp and weft high tenacity Polyester filament yarn
  • Integrated inner and outer coating of PVC/Nitrile
  • Standard lengths 100 or 110 metres
  • Low coil volume for easy handling
  • UV stabilised
  • Longer lengths available as required

Specifications

Inside Diameter Weight (g/m) Short Length Burst Pressure (Bar)
38mm (1½”) 360 50
50mm (2″) 510 50
64mm (2½”) 630 40
76mm (3″) 800 40
102mm (4″) 1100 40
152mm (6″) 1500 30
202mm (8″) 2100 25

The manufacturer reserves the right to modify specifications without prior notice.

Aqualine and Lawn irrigation

Aqualine is ideal for lawn irrigation, but is not suitable for fertigation. To read more about lawn irrigation, please go to our Useful Info page.
